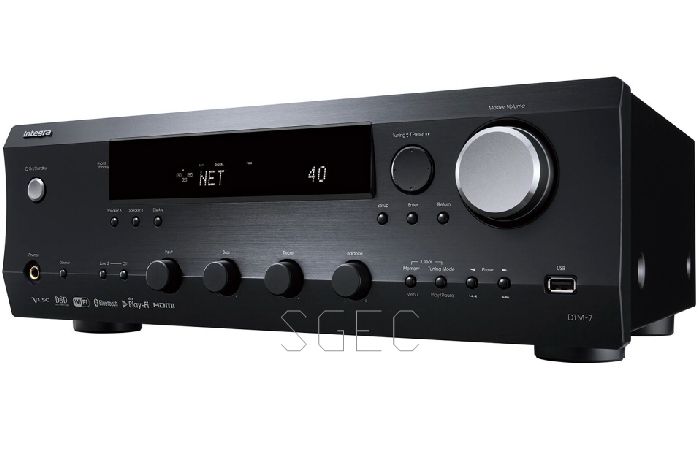

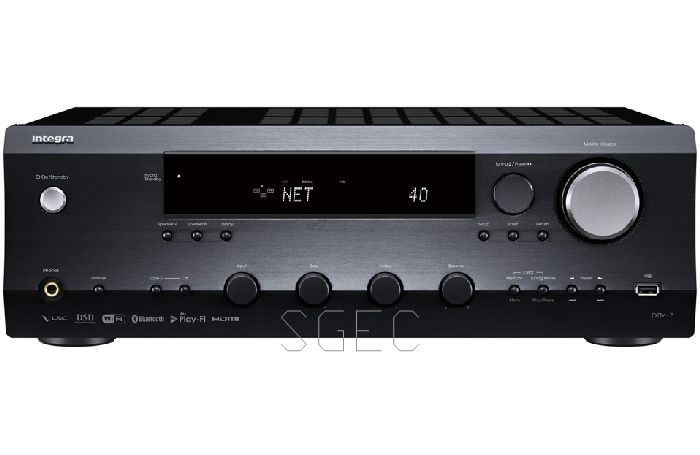

DTM-7

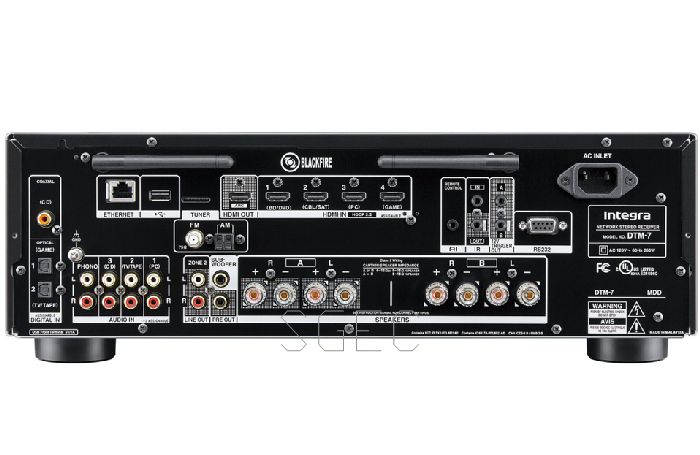

收音擴大機Integra DTM-7卻與眾不同，原廠還為它設置了4進1出的HDMI端子，且支援4K影像傳送，讓它可以成為家庭視聽系統的中心。如果您需要一台擴大機可以串連家裡的遊戲機、Apple TV、數位機上盒等，可是又不想為了這個買環繞擴大機，因為家裡根本不需要多聲道，只要一對喇叭您就滿意了，那麼，DTM-7就是最適合您的選擇。
AMPLIFIER SECTION
Power Output (8 Ω, 20 Hz-20 kHz, FTC) 100W / Channel (8 Ω)
Dynamic Power 240W / Channel (3 Ω)
210W / Channel (4 Ω)
120W / Channel (8 Ω)
THD+N (Total Harmonic Distortion) 0.08% (20 Hz-20 kHz, Half Power)
Input Sensitivity and Impedance 200 mV/47 kΩ (LINE)
3.5 mV/47 kΩ (Phono MM)
Rated RCA Output Level and Impedance
1 Vrms / 470 Ω (Subwoofer Pre Out)
200 mV / 2.3 k-Ω (Zone Line Out)
Phono Overload 70 mV (MM 1 kHz, 0.5%)
Frequency Response 10 Hz–100 kHz/ +1 dB-3 dB(Direct Mode)
Tone Control ±10dB, 90 Hz (Bass)
±10dB, 7.5 kHz (Treble)
Signal to Noise Ratio 106 dB (LINE, IHF-A)
80 dB (Phono MM, IHF-A)
Speaker Impedance 4 Ω–16 Ω
Headphone Output Impedance 330 Ω
Headphone Rated Output 80 mW (32 Ω 1 kHz 10 % THD)
TUNER SECTION
Tuning Frequency Range FM 87.5 MHz – 107.9 MHz
AM 530 kHz – 1,710 kHz
FM / AM Preset Memory 40 Stations
GENERAL
Power Supply AC 120 V~, 60 Hz
Power Consumption 260W
Stand-by Power Consumption 0.1W
No-Sound Power Consumption 35W
Hybrid Standby Power Consumption 2.6W
Dimensions (W X H X D) 435 × 149.5 × 328 mm
Weight 8.5 kg
CARTON
Dimensions (W X H X D) 572 x 264 x 401 mm
Weight 10.5 kg
